GN-SRM-24 Fully Insulated Inflatable Ring Network Switchgear
Short Description:
24KV gas filling cabinet uses SF6 gas as the insulation and breaking medium. Load switches, vacuum circuit breakers, and live busbars are all sealed in sealed stainless steel containers filled with a certain pressure. The external
Product details
Overview：
24KV gas filling cabinet uses SF6 gas as the insulation and breaking medium. Load switches, vacuum circuit breakers, and live busbars are all sealed in sealed stainless steel containers filled with a certain pressure. The external 24KV adopts American/European standard conduit connected to the incoming and outgoing cables through cable joints, forming a fully insulated and fully enclosed structure, effectively preventing floods and pollution, suitable for various harsh environments, and widely used in 24kV ring networks or terminal power supply systems.
The 24KV gas filling cabinet uses SF6 insulation gas with excellent performance, greatly improving the insulation performance. The compact structure makes it occupy a small area, which is very beneficial for the development of miniaturization. The arc extinguishing performance of the ring main unit has been effectively improved by using SF6 gas. Our gas cabinet adopts a fully enclosed structure, and the core components of the switch are not affected by the external environment, greatly enriching the usage scenarios of this type of ring network. The early purchase of the structure by Sevei Real Estate also greatly reduces maintenance work and lowers maintenance costs

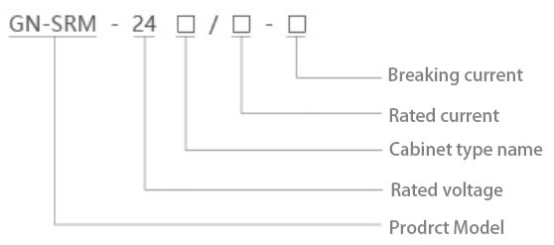

Model Meaning：
Main features of the product：
GN-SRM-24 series inflatable cabinet uses SF6 gas as arc extinguishing and insulation medium.
◆The switchgear is a fully sealed and insulated structure; The busbar, switch, and live parts are completely enclosed in a stainless steel casing.
◆The chamber is filled with 1.4 bar SF. Gas, protection, etc. are achieved, P67: The entire switch device is completely unaffected by external environmental conditions, and can ensure normal operation of the switch even in extreme situations such as short-term water immersion. The product is maintenance free for life,
◆The switchgear has a complete "five prevention" interlocking device, which completely eliminates personnel and equipment operation failures that may be caused by human error.All switch cabinets have reliable safety relief channels, which can ensure the personal safety of operators even in extreme situations.
◆Switchgear is divided into two types: fixed unit combinations and expandable unit combinations.
◆Switchgear usually has front incoming and outgoing lines, and can also be installed in different positions to achieve side outgoing lines or side extensions.
◆The cabinet size is easy to install and can be suitable for places with limited space and poor environmental conditions.
◆The switchgear can be equipped with electric, remote control, and monitoring devices according to different user needs.

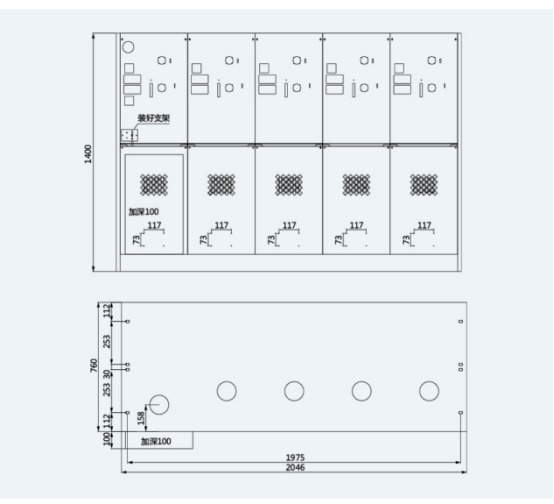

Outline dimension diagram:
