GN-SRM-12 Fully Insulated Inflatable Ring Network Switchgear
Short Description:
GN-SRM-12 fully insulated inflatable ring network switchgear product is widely used in 10kV/6kV distribution systems and is the preferred switch product for various urban and rural users' power transformation and distribution systems.
Product details
Overview：
GN-SRM-12 fully insulated inflatable ring network switchgear product is widely used in 10kV/6kV distribution systems and is the preferred switch product for various urban and rural users' power transformation and distribution systems.
The switchgear adopts a modular unit mode, which can be combined according to different purposes; There are two main types of fixed unit combinations and expandable units, which meet the flexible use needs of various substations for compact switchgear.
The GN-SRM-12 fully insulated inflatable ring network switchgear is a completely sealed system, with its charged components and switches enclosed within a stainless steel body. The entire switch device is not affected by external environmental conditions, ensuring operational reliability and personal safety. And it has achieved maintenance free operation. By selecting expandable busbars, any combination can be achieved to achieve full modularity. The expansion of busbar safety insulation and shielding ensures reliability and safety. The GN-SRM-12 fully insulated inflatable ring network switchgear can also provide a TV based automation solution, forming the concept of intelligent switches and minimizing on-site installation and commissioning workload.
GN-SRM-12 fully insulated inflatable ring network switchgear is divided into non expandable standard configuration and expandable standard configuration. Due to its combination of full and half modules and self scalability, it has extremely special flexibility.
GN-SRM-12 fully insulated inflatable ring network switchgear complies with GB standards. The design lifespan for operation under indoor conditions (20 ℃) exceeds 30 years.

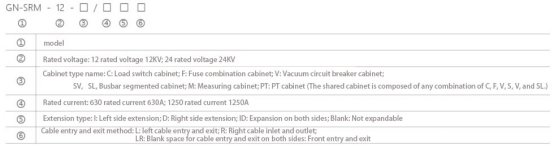

Product Model Description：
illustrate with examples:
1. GN-SRM-12-C/630DL represents a load switchgear with a rated voltage of 12kV and a rated current of 630A. It has a right side extension and a left cable entry and exit method.
2,GN-SRM-12-CF/630IR represents a combination of load switch unit and fuse combination unit, with a bus voltage of 12KV and a bus current of 630A. It is designed for left side expansion and right side cable entry and exit.
Main features of the product：
Technical description
GN-SRM-12 fully insulated inflatable ring main switch equipment is installed on a galvanized sheet frame, with the switch unit inside an SF6 gas box made of corrosion-resistant and non-magnetic 3mm thick stainless steel plate.
SF6 gas tank is a "sealed pressure system" that can operate for 30 years under normal working conditions. The pressure of SF6 gas during normal operation is 0.15~0.4 bar. The gas box is equipped with a pressure release device to ensure that gas can be released from the bottom or rear when the pressure is too high.
SWITCH UNIT
The load switch adopts a coaxial rotating double break method, which cooperates with the sliding plate through the same operating hole for kinetic operation. Therefore, the switch can only be in one of the three states of "closing, opening, and grounding" at any time, completely avoiding misoperation.
Operating mechanism
The operating mechanism of the switch is installed at the front of the air box and has undergone special processing to prevent rust and corrosion. It is convenient for manual operation and maintenance and easy to achieve electric operation.
Performance indicators：

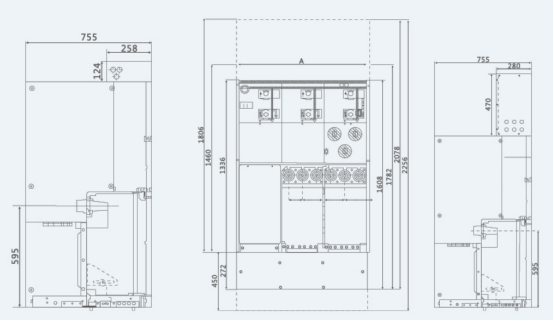

External dimensions：
