GN-12D Three Station Integrated Circuit Breaker Cabinet
Short Description:
GN-12D three station integrated circuit breaker cabinet is a switchgear developed by our company to meet the technical interpretation of the reliability, safety, and compactness requirements of electrical equipment for power users. The product features air insulation, compact design, and comprehensive type testing. Suitable for 10kV/7.2kV power distribution systems in public buildings, commercial residential buildings, industrial and mining manufacturing industries, as well as supporting complete sets of mechanical equipment driven by high-voltage motors with high requirements for compactness.
Product details
Overview：
GN-12D three station integrated circuit breaker cabinet is a switchgear developed by our company to meet the technical interpretation of the reliability, safety, and compactness requirements of electrical equipment for power users. The product features air insulation, compact design, and comprehensive type testing. Suitable for 10kV/7.2kV power distribution systems in public buildings, commercial residential buildings, industrial and mining manufacturing industries, as well as supporting complete sets of mechanical equipment driven by high-voltage motors with high requirements for compactness.
Product Features：
1、Compact/Flexible
The insulation method using air as the medium meets the electrical clearance and partial discharge standards of the power industry technical specifications.
Compact matching cabinet size, matching standard cabinet size: 500 * 1000 * 1900mm (width x depth x height), the complete power distribution system is particularly compact, saving space for expensive urban construction land
Flexible busbar form and expansion method, convenient for splicing with other different cabinet types.
2. Whole/fixed seal
Integrated circuit breaker combination design, integrating isolation switch, circuit breaker, grounding switch, and live sensor into one, modular design, simple and reliable interlocking, and convenient maintenance.
3. Visualization/High Efficiency
Visual isolation switch fracture design, fast delivery time, and overall modular design make electrical assembly in complete factories convenient and fast. Integrated structure, various types of closures are required to be implemented within a single mechanism, reducing the risk of lockout failure caused by assembly process issues in complete electrical factories.
4. Stability/Durability
Spring/permanent magnet mechanism is optional, with long mechanical life and vacuum arc extinguishing chamber packaging by solid sealing method, providing high insulation performance.

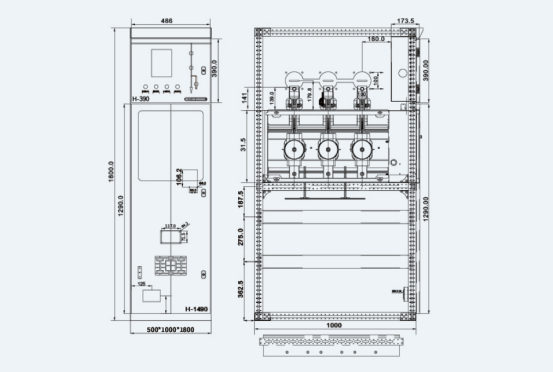

External dimensions：
