GNRMU-40.5 SERIES GAS INSULATED SWITCHGEAR (C-GIS)
Short Description:
The GNRMU series gas insulated switchgear (C-GIS) is a new generation of switch products developed by Xidong Electric with independent intellectual property rights. It uses low-pressure SF6 gas as the insulation medium, vacuum circuit breakers, and three position switches as the main primary components, sealed inside the gas filled compartment. The gas chamber is welded with 3mm thick high-quality stainless steel plate, which is not affected by the environment. It has the characteristics of reliable operation, safety guarantee, compact structural design, small space occupation, maintenance free, and long service life.
Product details
Overview：
The GNRMU series gas insulated switchgear (C-GIS) is a new generation of switch products developed by Xidong Electric with independent intellectual property rights. It uses low-pressure SF6 gas as the insulation medium, vacuum circuit breakers, and three position switches as the main primary components, sealed inside the gas filled compartment. The gas chamber is welded with 3mm thick high-quality stainless steel plate, which is not affected by the environment. It has the characteristics of reliable operation, safety guarantee, compact structural design, small space occupation, maintenance free, and long service life.
The GNRMU series switchgear is a complete set of distribution equipment for 40.5kV three-phase AC 50Hz single busbar and single busbar segmented systems. It is mainly used for power generation companies, small and medium-sized generators to transmit electricity to mining enterprises, distribution of power to enterprises, and power system substations for power receiving, transmission, and starting of large high-voltage motors, to implement control, protection, and monitoring.

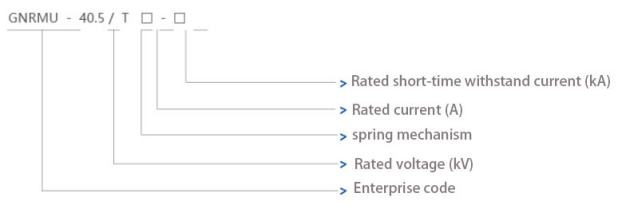

Model Meaning：
Execution standards：
GB/T 1207 Electromagnetic Voltage Transformers
GB/T 1208 Current Transformers
GB/T1984 High Voltage AC Circuit Breakers
GB/T 1985 High voltage AC isolating switches and grounding switches
GB/T 3906 3.6kV~40.5kV AC Metal Enclosed Switchgear and Control Equipment GB/T 11022 Common Technical Requirements for High Voltage Switchgear and Control Equipment Standards GB 50150 Electrical Equipment Installation Engineering Electrical Equipment Handover Test Standards
DL/T 402 Technical Conditions for Ordering High Voltage AC Circuit Breakers
DL/T 404 3.6kV~40.5kV AC metal enclosed switchgear and control equipment DL/T 486 High voltage AC isolating switches and grounding switches
DL/T 593 Common Technical Requirements for High Voltage Switchgear and Control Equipment Standards
Q/GDW13088.1-201812kV~40.5kV High Voltage Switchgear Procurement Standard Part 1: General Technical Specifications
Q/GDW1308816-2018 Procurement Standard for 12kV~40.5kV High Voltage Switchgear Part 16: Special Technical Specification for 40.5kV/1250A~31.5kA Inflatable High Voltage Switchgear
Usage environment：
*Altitude:<4000m (please specify when the equipment is operating at an altitude of over 1000m for adjustment of inflation pressure during manufacturing).
*Environmental temperature: Maximum temperature:+55 ℃; Minimum temperature: -25 ° C; The average temperature within 24 hours shall not exceed 35 ℃.
*Environmental humidity: The average relative humidity within 24 hours should not exceed 95%; The average monthly relative humidity does not exceed 90%.
*Installation environment: There are no explosive or corrosive gases in the surrounding air, no severe vibrations or impacts in the installation site, and the pollution level does not exceed Class C in GB/T26218.1.
*Seismic intensity: 8 degrees.
When the usage conditions exceed the above regulations, a solution can be negotiated with the user.

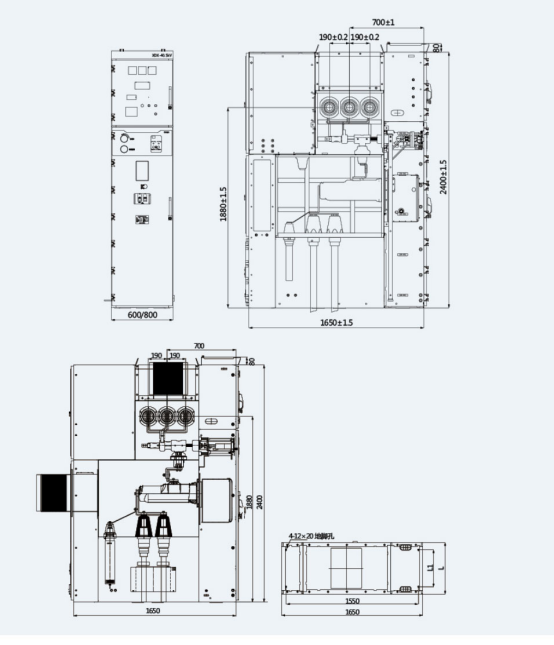

Drawing：
