CHQ1-G automatic transfer switch
Short Description:
CHO1-G Automatic Transfer Switch (ATSE) is an automatic transfer switch that integrates switch and logic control, truly realizing mechatronics integration. It has functions such as voltage detection, frequency detection, communication interface, electrical and mechanical interlocking, and can achieve automatic, electric remote, and emergency manual control. The operation is managed by the logic control board using various logic commands to operate the motor and gearbox.
Product details
Product Overview：
CHO1-G Automatic Transfer Switch (ATSE) is an automatic transfer switch that integrates switch and logic control, truly realizing mechatronics integration. It has functions such as voltage detection, frequency detection, communication interface, electrical and mechanical interlocking, and can achieve automatic, electric remote, and emergency manual control. The operation is managed by the logic control board using various logic commands to operate the motor and gearbox. The motor drives the switch spring to store energy, instantly releases the acceleration mechanism, quickly connects and disconnects the circuit or performs circuit conversion, and achieves safe isolation through obvious visible states, greatly improving the performance of various electrical and mechanical devices.
CHQ1-G switch is designed with a metal casing, which is compact and sturdy. The CHQ1-G switch has a metal casing for the control part, and the switch casing components are made of glass fiber unsaturated polyester resin, which has strong dielectric properties, protective capabilities, and reliable operational safety. The switch is suitable for automatic switching between the main power supply and the backup power supply of the power supply system, or automatic switching and safety isolation of two load devices. The switch has a beautiful, novel, simple, small size, and com

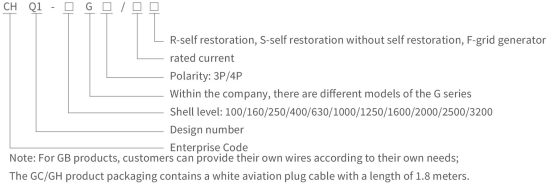

Model meaning:
Product Usage:
CHO1-G automatic transfer switch is mainly used for switching between one main and one backup or mutual backup power supply systems in distribution or motor networks with AC 50GN, rated voltage 400V, DC rated voltage 220V, and rated current 16 to 3200A, as well as load switching between mains and generator sets. It can also be used for isolating circuits and lines that are not frequently connected or disconnected. The product is widely used in the transmission and distribution systems and automation systems of important power supply places such as fire protection, hospitals, banks, and high-rise buildings that do not allow power outages.
