CH5-10/20/40/60/80 series surge protector
Short Description:
CH5-10/20/40/60/80 Surge Protection Devices (hereinafter referred to as "Protectors) are applicable to AC 50/60Hz, 400V and below TN-S, TN-C, TN-C-S, TT, power supply systems, and provide protection against lightning or surge overvoltage in the power grid.
Product details

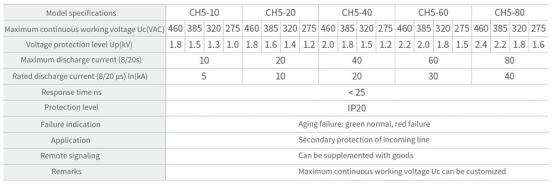

Basic parameters：
CH5-10/20/40/60/80 Surge Protection Devices (hereinafter referred to as "Protectors) are applicable to AC 50/60Hz, 400V and below TN-S, TN-C, TN-C-S, TT, power supply systems, and provide protection against lightning or surge overvoltage in the power grid.

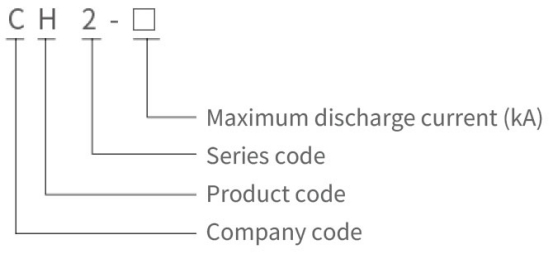

Model meaning:
Failure separation device
The failure-disengaging device is set on the module of the protector. When the protector fails due to overheating or breakdown, the failure-engaging device can automatically disconnect it from the power grid and give an indication signal. The signboard shows green when the protector is normal and red after failure-diseng.
