CH24L series residual current operated circuit breaker
Short Description:
The CH24L series leakage circuit breakers have the characteristics of advanced structure, reliable performance, high breaking capacity, and beautiful and compact appearance. housing and main components are made of impact-resistant and high-flame-retardant materials. It is suitable for alternating current of 50Hz or 60,
Product details
Basic parameters：
The CH24L series leakage circuit breakers have the characteristics of advanced structure, reliable performance, high breaking capacity, and beautiful and compact appearance. housing and main components are made of impact-resistant and high-flame-retardant materials. It is suitable for alternating current of 50Hz or 60, rated working voltage of 400V and below, and rated current of 6A to 63A. It is mainly used for the lighting distribution line and of office buildings, residential buildings and similar buildings for overload, short circuit and leakage protection. It can also be used for infrequent switching of lines under normal conditions.
The product the standard GB16917.1.

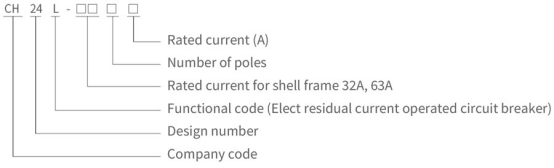

Model meaning:
1. Electrical and mechanical life:
Electrical life: 2000 cycles, COSΦ=0.85~0.9;
Mechanical life: 2000 cycles;
Operating frequency: In≤25A 240 cycles/h; In>25A 20 cycles/h;
2. Insulation and impact voltage resistance performance
The connection between each pole and the neutral pole can withstand an impact voltage with a peak value of 600 V;
The connection between each pole and the neutral pole and the metal support can withstand an impact voltage with a peak value of 8000 V

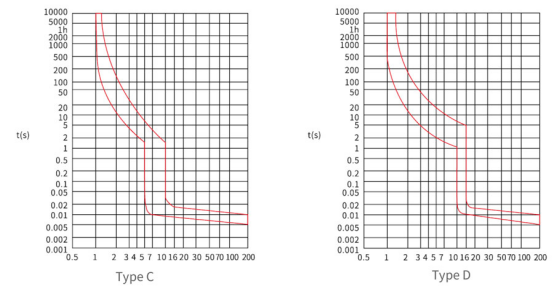

3. The characteristic curve of the trip unit is shown in the figure.
7. The torque of the connection screw shall not be less than 1.5 N·m;
8. The ambient air temperature;

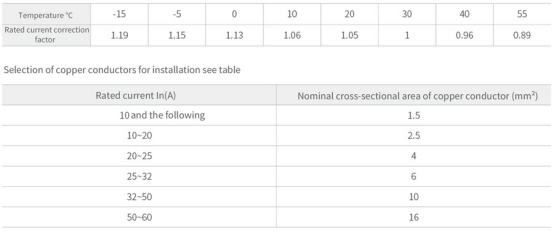

The ambient air temperature is 40℃ and the lowest is not lower than -5℃, the average ambient air temperature shall not exceed 35℃ for 24h and the influence of the ambient air temperature on the circuit breaker is shown in the table.

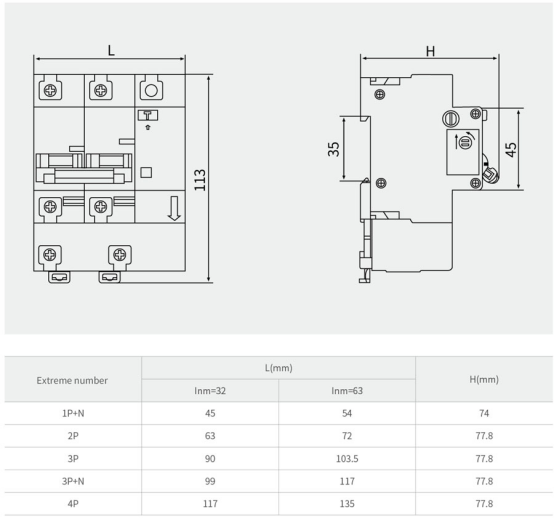

Outside form and installation size:
