CHB8-125GQ small automatic reclosing circuit breaker
Short Description:
CHB8-125GQ Circuit breaker for electric energy meter case (hereinafter referred to as circuit breaker), suitable for 50Hz, rated working voltage up to 400V
Product details
Basic parameters：
CHB8-125GQ Circuit breaker for electric energy meter case (hereinafter referred to as circuit breaker), suitable for 50Hz, rated working voltage up to 400V, rated current up to 100A circuit, for remote control of circuit disconnection or closing, and at the same time for overload and short circuit protection of the circuit, it can also be used as a circuit for infrequent operation conversion. At present, it is widely in intelligent prepaid electric energy meters to control the closing and disconnection of circuits.

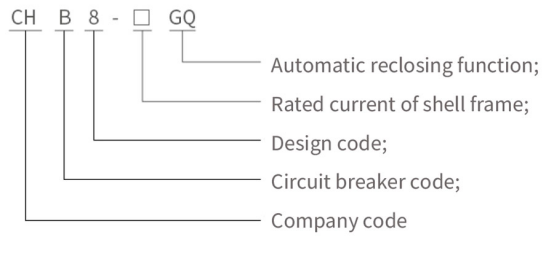

Model meaning:
