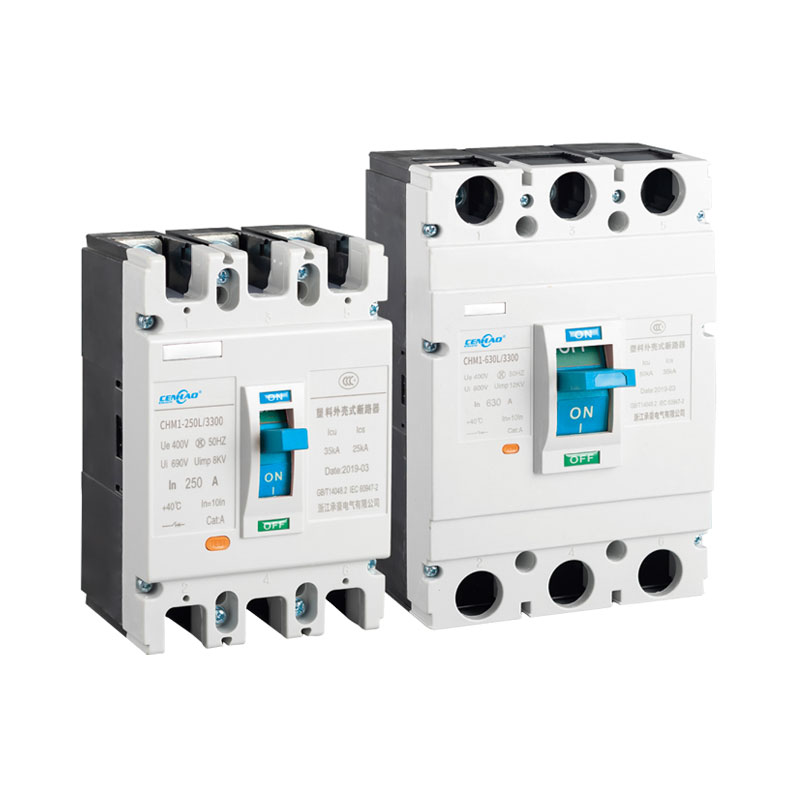

CHM1 Molded Case Circuit Breaker
Short Description:
CHM1 series plastic shell circuit breaker (hereinafter referred to as the circuit breaker) is a new type of circuit breaker designed and developed by our company using international advanced technology. This circuit breaker has the characteristics of small size, high breaking capacity, short arcing, and anti vibration, making it an ideal product for land and ship use. The rated insulation voltage of the circuit breaker is 1000V
Product details

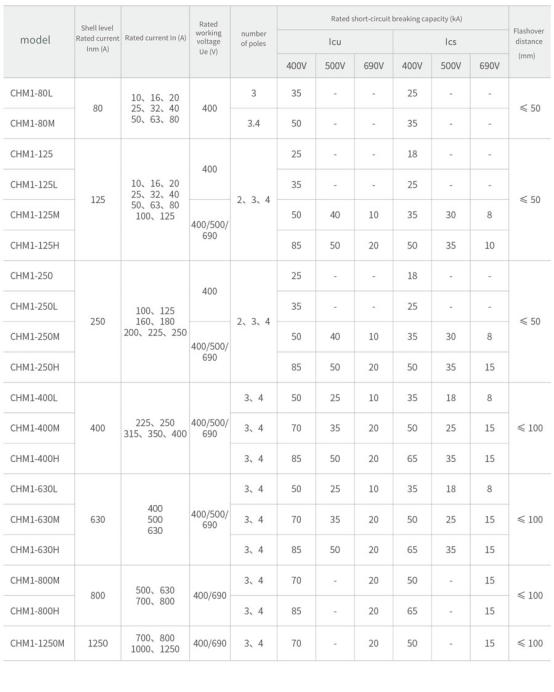

Basic parameters：
CHM1 series plastic shell circuit breaker (hereinafter referred to as the circuit breaker) is a new type of circuit breaker designed and developed by our company using international advanced technology. This circuit breaker has the characteristics of small size, high breaking capacity, short arcing, and anti vibration, making it an ideal product for land and ship use. The rated insulation voltage of the circuit breaker is 1000V (800V for CHM1-80), suitable for distribution networks with AC 50Hz/60Hz, rated working voltage up to 1000V, and rated current up to 1250A. It is used to distribute electrical energy and protect lines and power equipment from damage caused by overload, short circuit, and undervoltage faults. It can also be used for infrequent line switching and motor starting, as well as overload, short circuit, and undervoltage protection.
Circuit breakers can be installed vertically or horizontally.
Circuit breakers are suitable for isolation and are represented by the symbol "one ×".
The circuit breaker complies with the standard GB/T14048.2 "Low voltage switchgear and control equipment Part 2: Circuit breakers".

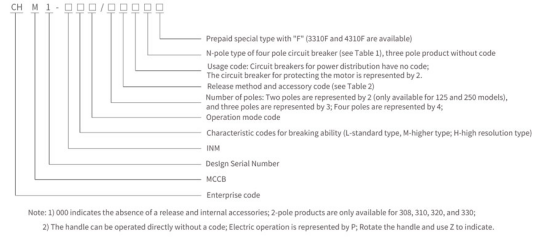

Model meaning:
operational condition
The altitude of the installation site shall not exceed 2000m;
The ambient air temperature does not exceed+40 ℃, and its average temperature value over 24 hours does not exceed+35 ℃; The lower limit of ambient air temperature is -5 ℃,
Note: If the ambient air temperature is above+40 ℃ or below -5 ℃, consultation with the manufacturer should be conducted;
When the maximum temperature is+40 ℃, the relative humidity of the air does not exceed 50%. Higher humidity is allowed at lower temperatures, such as reaching 90% at 20 ° C. Special measures should be taken for occasional condensation on the product due to temperature changes;
The pollution level is level 3;
The installation category of the main circuit of the circuit breaker is III, and the installation category of the auxiliary circuit and control circuit that are not connected to the main circuit is III;
The maximum inclination angle for installation is 22.5 °;
Can work reliably under normal ship vibration.

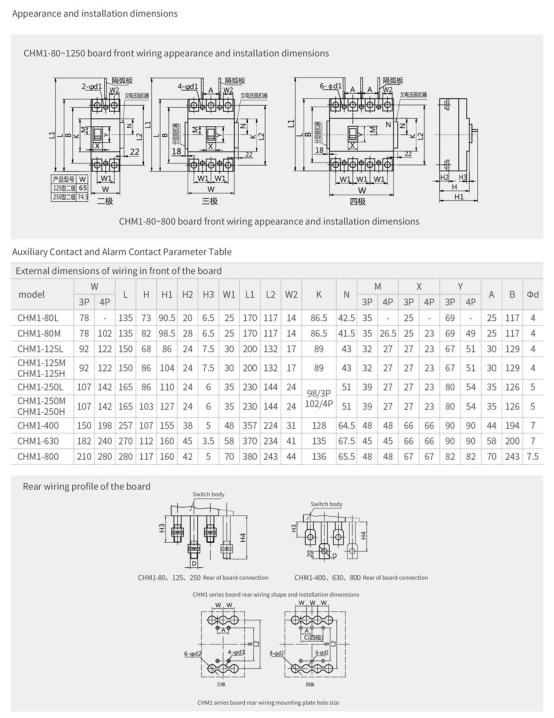

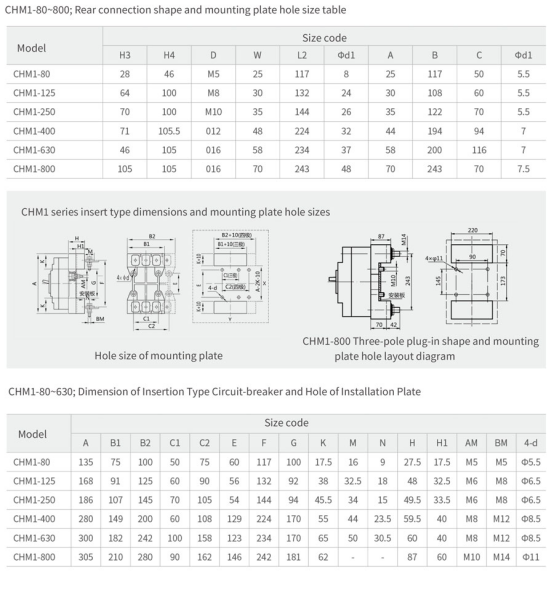

Release mechanism and accessory number
