VS1-12 Indoor high-voltage vacuum circuit breaker/handcart type
Short Description:
CHV-12 series indoor handcart-type high-voltage vacuum circuit breakers are three-phase AC 50Hz, 1kV rated voltage indoor switchgear, which can be used for the control and protection of industrial and mining enterprises, power plants and substations, and electrical facilities, and are suitable places with frequent operation. The operating mechanism and the circuit breaker body are integrated, and the design can be used as a fixed installation unit, or can be equipped with a special mechanism to form a handcart unit. The main circuit part can adopt an integrated solid insulation pole column to achieve the miniaturization, high reliability and maintenance-free of the circuiter, and can be equipped with KYN28A-12 (GZS) and other middle-mounted handcart-type switch cabinets, and the fixed type also be matched with XGN series fixed-mounted switch cabinets.
Product details
Basic parameters：
CHV-12 series indoor handcart-type high-voltage vacuum circuit breakers are three-phase AC 50Hz, 1kV rated voltage indoor switchgear, which can be used for the control and protection of industrial and mining enterprises, power plants and substations, and electrical facilities, and are suitable places with frequent operation. The operating mechanism and the circuit breaker body are integrated, and the design can be used as a fixed installation unit, or can be equipped with a special mechanism to form a handcart unit. The main circuit part can adopt an integrated solid insulation pole column to achieve the miniaturization, high reliability and maintenance-free of the circuiter, and can be equipped with KYN28A-12 (GZS) and other middle-mounted handcart-type switch cabinets, and the fixed type also be matched with XGN series fixed-mounted switch cabinets.

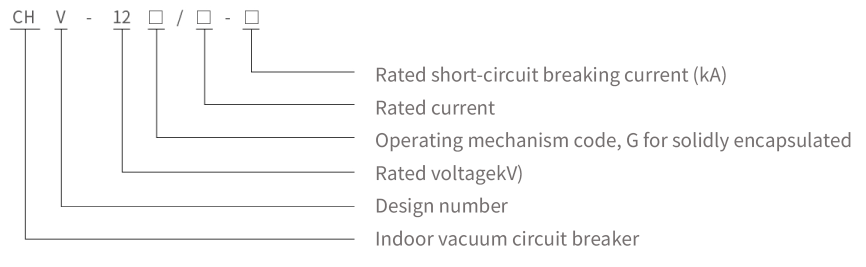

Model meaning:

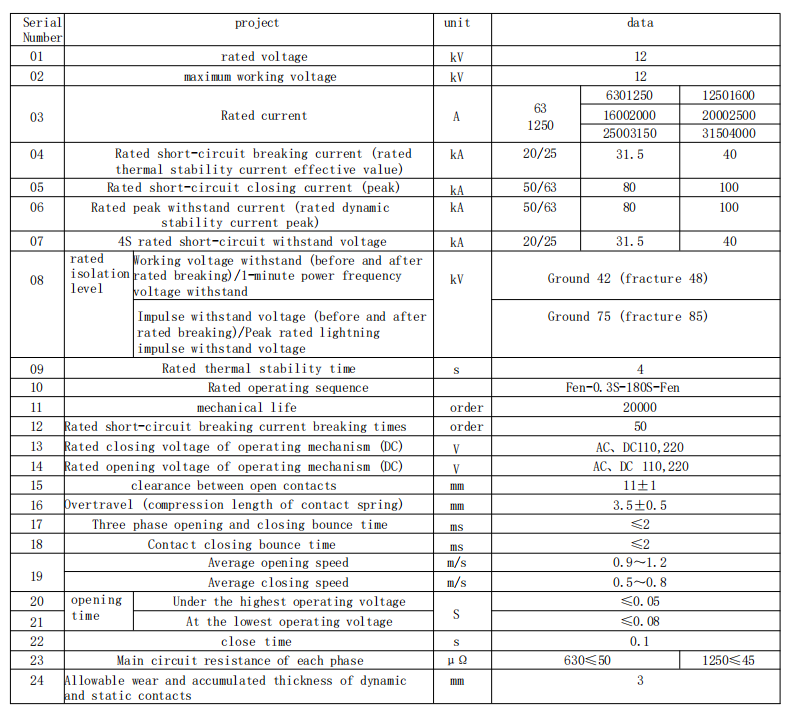

Technical Parameter：

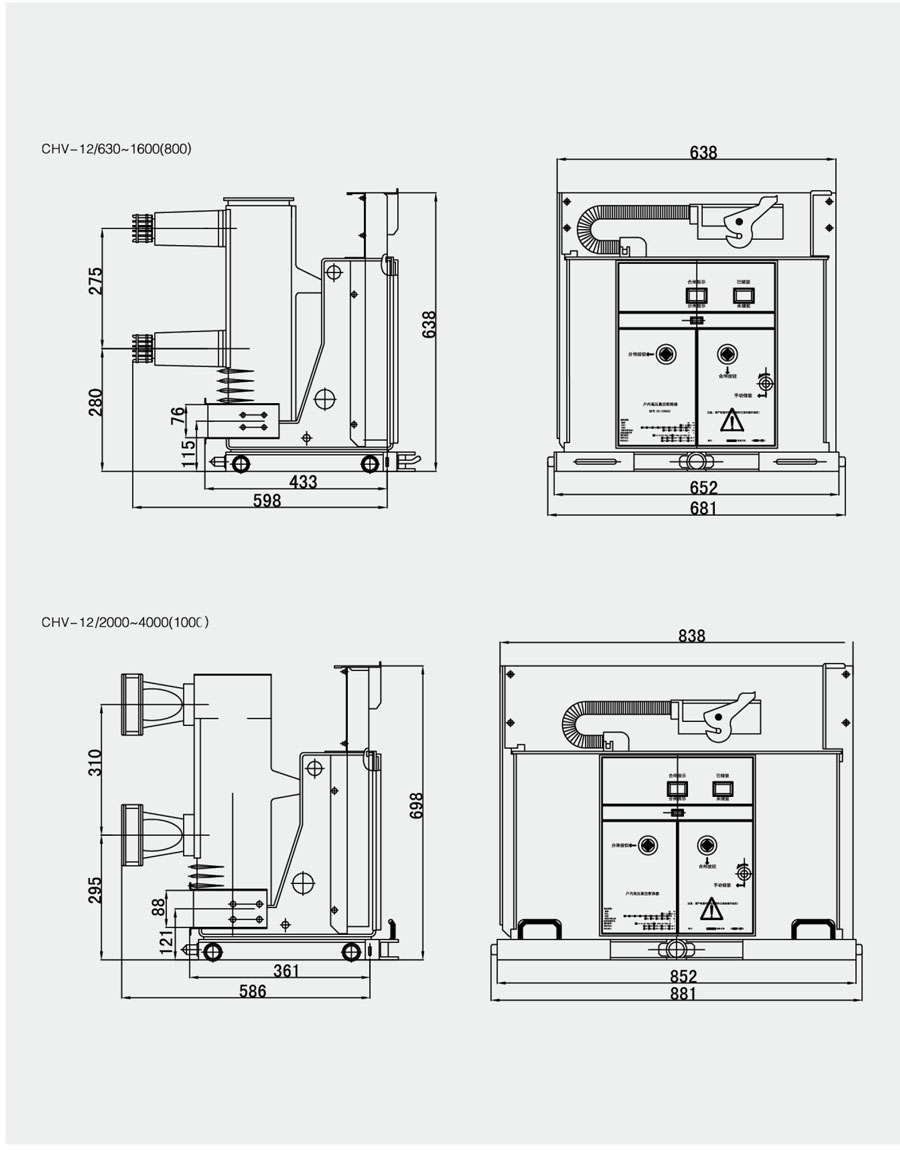

Outline dimension diagram：
