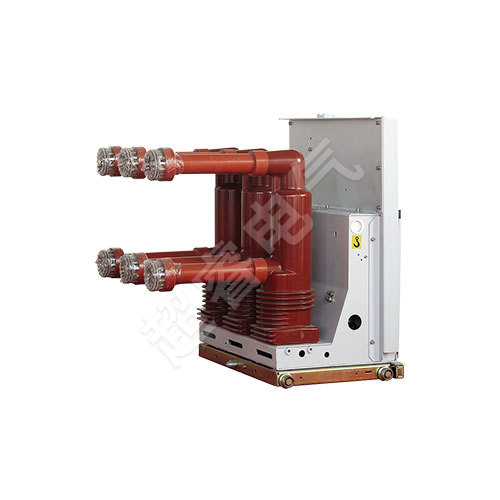

VS1-24 Indoor High Voltage Vacuum Circuit Breaker
Short Description:
The VS1-24 indoor high-voltage vacuum circuit breaker is an indoor switchgear for three-phase AC 50Hz power systems with a rated voltage of 24kV. It serves as a protection and control unit for power grid equipment and industrial and mining enterprise power equipment. Suitable for places that require frequent operation at rated working current, or multiple disconnections of short-circuit current.
Product details
Overview of VS1-24 Indoor High Voltage Vacuum Circuit Breaker:
The VS1-24 indoor high-voltage vacuum circuit breaker is an indoor switchgear for three-phase AC 50Hz power systems with a rated voltage of 24kV. It serves as a protection and control unit for power grid equipment and industrial and mining enterprise power equipment. Suitable for places that require frequent operation at rated working current, or multiple disconnections of short-circuit current.
The circuit breaker adopts an integrated design of the operating mechanism and the circuit breaker body, which can be used as a fixed installation unit or equipped with a dedicated propulsion mechanism to form a handcart unit.
VS1-24 Indoor High Voltage Vacuum Circuit Breaker Normal Daily Operating Environment:
1. Surrounding air temperature: upper limit+40C, lower limit -15C;
2. Altitude: ≤ 1000m (if altitude needs to be increased, the rated insulation level will be correspondingly increased);
3. Amplitude: The seismic intensity does not exceed 8 degrees;
4. The daily average relative humidity of the air is not more than 95%, and the monthly average is not more than 90% in places without fire, explosion hazards, serious pollution, chemical corrosion, and severe vibration.
Main technical parameters of VS1-24 indoor high-voltage vacuum circuit breaker
Dimensions and Installation Drawing of VS1-24 Indoor High Voltage Vacuum Circuit Breaker
