DFWK Photovoltaic Dedicated Switching Station
Short Description:
DFWK-12系列户外环网柜是公司采用技术，根据我国各区域配电网络特点和城市配网电缆化改造的实际情况，开发、生产的充气式户外环网柜。
Product details
▨summary
The DFWK-12 series outdoor ring main unit is an inflatable outdoor ring main unit developed and produced by the company based on the characteristics of distribution networks in various regions of China and the actual situation of cable transformation in urban distribution networks.
The DFWK-12 series outdoor ring main unit adopts XGN15-12 box type fixed AC metal enclosed switchgear, which has the advantages of modularity, scalability, full insulation, full sealing, safety and reliability, and maintenance free. It is suitable for any harsh environment and is widely used in industrial parks, residential areas, streets, airports, various buildings, bustling commercial centers and other places.
The DFWK-12 series outdoor ring main unit has standard voltage levels of 12kV and 24kV, and can expand the automation function of the distribution network, realizing the intelligence of the ring main unit and making the power grid stronger and smarter.

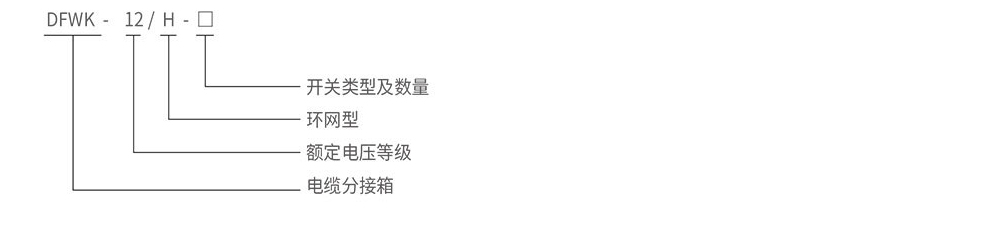

▨Model Meaning
▨Conditions of Use
◆Environmental temperature: temperature+50 ℃, low temperature -40 ℃, daily average temperature not exceeding 35 ℃;
◆Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90%;
◆Wind speed: not exceeding 35m/s;
◆Pollution level: Level I-III;
◆Earthquake intensity: 8 degrees;
◆Ground inclination: not greater than 3 degrees;
◆Installation location: Installed in a place without fire, explosion, or severe vibration, with good ventilation and no corrosive gases. condition
◆When the equipment is installed at an altitude of over 2000 meters, special attention should be paid so that the company can adjust the SF6 pressure during manufacturing.
◆If adverse conditions are involved, please be sure to consult the company.
