YB □ -12/0.315-0.69 (PV) Photovoltaic Special Box Transformer
Short Description:
Widely used in a series of energy generation systems such as centralized, string, and distributed new energy.
Product details
▨Overview
Widely used in a series of energy generation systems such as centralized, string, and distributed new energy.

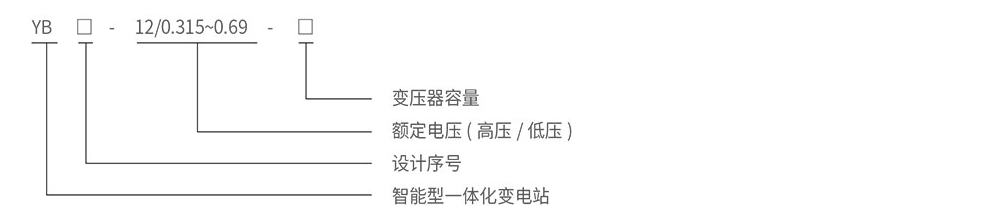

▨Model meaning
▨Function and characteristic
◇High voltage switchgear, transformers, and low-voltage switchgear are integrated into one, with strong completeness;
◇Complete high and low voltage protection, safe and reliable operation, and simple maintenance;
◇ Small footprint, low investment, short production cycle, and convenient mobility; ◇ Flexible and diverse wiring schemes;
◇ Structure: Honeycomb structure double-layer (aluminum zinc coated) shell is firm, insulated and ventilated, beautiful, and has a high level of protection. The shell materials are available in stainless steel, aluminum alloy, cold-rolled plate, and color steel plate;
◇ Diverse types: universal, villa, compact, and other styles;
The box transformer is equipped with an integrated measurement and control device, which realizes the reliability detection of short circuit and single-phase grounding faults, fault collection, and has the "four remote" function, making it easy to upgrade the automation of the distribution network.
▨Normal usage conditions
◇ Altitude not exceeding 2000m;
◇ Environmental temperature: -25 ℃~+40 ° C;
◇ Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90%;
◇ Installation location: A place without fire, explosion hazards, conductive dust, corrosive chemical gases, and severe vibrations. If the above conditions are exceeded, users can negotiate with our company.
▨Execution standards
◇This product meets the following standards:
◇ GB/T17467-1998 "High voltage/low voltage prefabricated substations"
◇DL/T537-93 "Technical Conditions for Ordering 6-35kV Box type Substations"
